Android software

From GCtronic wiki
Jump to navigation Jump to search

Wheelphone main wiki

Apps shortcut list

Supported phones

Some phones are reported to not work due to missed system libraries; you can test if your phone should be supported with the following application: features.apk. From the list of features that is shown the android.hardware.usb.accessory must be present. If you are intereseted you can find the source code from the following link features.zip
Moreover the phone must be configured in order to accept installation of applications coming from different sources than Play Store.

Here is a list of phones that are tested to be working:

  • Sony Ericsson Xperia arc LT15i (Android 2.3.4)
  • Sony Ericsson Xperia Mini (Android 2.3.4, Android 4.0.4)
  • Sony Ericsson Xperia tipo ST21i2 (Android 4.0.4)
  • LG Nexus 4 (Android 4.2+)
  • Samsung Galaxy S2 (Android 4.0.3)
  • Samsung Galaxy S3 Mini (Android 4.1.1)
  • Samsung Galaxy S3 (Android 4.1.2)
  • Samsung Galaxy S4 (Android 4.2.2)
  • Samsung Galaxy S Duos (Android 4.0.4)
  • Huawei Ascend Y300 (Android 4.1.1)
  • Huawei Ascend Y530 (Android 4.3)

Phones running Android 4.1 (or later) works with the new Android Open Accessory Protocol Version 2.0, thus you need to update to the latest robot firmware (>= rev43).

Let us know if your phone is working at the following address:

Wheelphone library

Wheelphone library to be used in android applications development to communicate with the robot (get sensors data and send commands).
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-library/trunk/android-wheelphone-library android-wheelphone-library-read-only

Alternatively you can download directly the jar file to be included in your project WheelphoneLibrary.jar.
You can find the API documentation in the doc folder or you can download it from WheelphoneLibrary.pdf.

ROS

Android side

ROS Fuerte

APK
The android application can be downloaded from the Google Play store Wheelphone ROS, or directly from WheelphoneROS.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneROS WheelphoneROS

It's based on the android_tutorial_pubsub contained in the android package.

Requirements building

How To

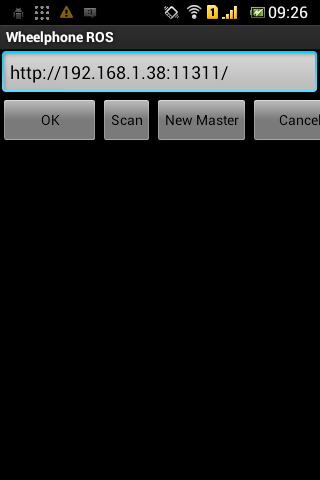

1) once the application is started the IP address of the computer running roscore need to be inserted, then press OK

2) on top of the window you should see "Connected" and right after the camera image that is sent to the computer; after some seconds you should receive the sensors values and the camera image in the computer. If you see "Robot disconnected" you need to restart the application

ROS Hydro

APK
The android application can be downloaded from directly from WheelphoneROShydro.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/wheelphone_ros wheelphone_ros

How to build

  1. download and install Andorid Studio + SDK, refer to https://wiki.ros.org/android/Android%20Studio/Download
  2. sudo apt-get install ros-hydro-catkin ros-hydro-ros ros-hydro-rosjava python-wstool
  3. download android core frome the repo https://github.com/rosjava/android_core/tree/hydro and extract it to your preferred dir (e.g. ~/hydro_workspace/android)
  4. open Android Studio (run studio.sh) and open a project pointing to "~/hydro_workspace/android/android_core/settings.gradle" (refer to previous dir path); build the project (this can take a while...)
  5. download the "wheelphone_ros" project (svn repo) and put it inside the "android_core" directory
  6. modify the file "settings.gradle" inside the "android_core" directory in order to include also the "wheelphone_ros" project
  7. close and reopen Android Studio; the wheelphone project should be available for building

Alternatively you can download directly a virtual machine which includes all the system requirements you need to start playing with ROS and Wheelphone from the following link ROSHydro-WP.ova (based on the VM from https://nootrix.com/2014/04/virtualized-ros-hydro/); this is the easiest way!

How to run
1) once the application is started the IP address of the computer running roscore need to be inserted, then press Connect

2) on top of the window you should see "Connected" and right after the camera image that is sent to the computer; after some seconds you should receive the sensors values and the camera image in the computer. If you see "Robot disconnected" you need to restart the application


Useful links

PC side

Summary
This is a monitor interface of the Wheelphone based on ROS:

You can move the robot through the interface or through the keyboard: arrow keys to move and enter to stop.

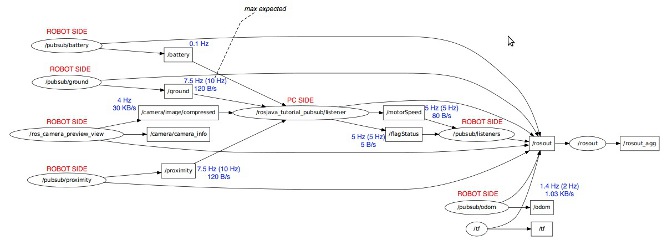

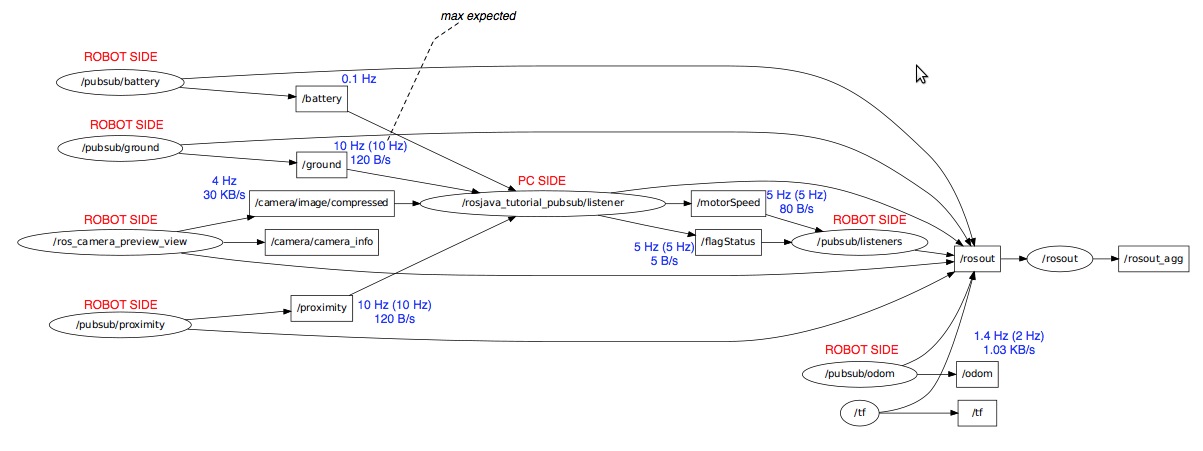

Here is the nodes involved in ROS:

A video of the this demo can be seen here video.

ROS Fuerte

Requirements running

Source
The source code is available from rosjava_tutorial_pubsub.zip. It's based on the rosjava_tutorial_pubsub contained in the rosjava package.

How To
Follow these steps to start the PC-side node:

  1. download the ros pc-side binary files
  2. modify the script start-ros.sh in the bin directory with the correct IP address of the host computer
  3. execute start-ros.sh (if the script isn't executable type chmod +x -R path-to/bin where bin is the bin directory of the zip)

ROS Hydro

Requirements

Alternatively you can download directly a virtual machine which includes all the system requirements you need to start playing with ROS and Wheelphone from the following link ROSHydro-WP.ova (based on the VM from https://nootrix.com/2014/04/virtualized-ros-hydro/); this is the easiest way!

How To Build

  1. cd ~/hydro_workspace/
  2. mkdir -p rosjava/src
  3. cd src
  4. catkin_create_rosjava_pkg rosjava_catkin_package_wheelphone
  5. cd ..
  6. catkin_make
  7. source devel/setup.bash
  8. cd src/rosjava_catkin_package_wheelphone
  9. catkin_create_rosjava_project my_pub_sub_tutorial
  10. cd ../..
  11. catkin_make
  12. download the pc-side project and substitute the "my_pub_sub_tutorial" directory with the content of the zip
  13. cd ~/hydro_workspace/rosjava
  14. catkin_make

How To Run

  1. open a terminal and type:
    1. export ROS_MASTER_URI=https://IP:11311 (IP should be the host machine IP, e.g. 192.168.1.10)
    2. export ROS_IP=IP (the same IP as before)
  2. open a second terminal and type the previous two commands
  3. in the first terminal type "roscore"
  4. in the second terminal type:
    1. cd ~/hydro_workspace/rosjava/src/rosjava_catkin_package_wheelphone/my_pub_sub_tutorial
    2. cd build/install/my_pub_sub_tutorial/bin
    3. ./my_pub_sub_tutorial com.github.rosjava_catkin_package_wheelphone.my_pub_sub_tutorial.Listener

Useful links

ROS Tools

  • you can use rviz to visualize odometry information, type "rosrun rviz rviz" and open one of the following configuration files depending on your ROS version fuerte config hydro config.
  • you can use rxgraph (fuerte) or rqt_graph (hydro) to visualize a diagram of the nodes and topics available in ROS simply type "rxgraph" or "rqt_graph" in a terminal

Navigation

Wheelphone markers navigation

Summary
Wheelphone makes a tour of the apartment taking snapshot pictures and then returns back to the charging station.
This application shows the potentiality of the Wheelphone robot in an home environment. With the help of some target points identified with different markers, the Wheelphone robot is able to navigate from one room to the other localizing itself; moreover it takes pictures and uploads them to a web page. When the Wheelphone battery is low it can automatically charge itself thanks to the docking station.
There are two tabs: one illustrates some sensors values, the target detection information (direction and orientation), the current state of the robot and some others information; the second one shows the camera view and when a frame target is detected a nice augmented reality letter is visualized.
The application is designed for the following sequence:

  1. the robot moves around looking for the docking station; once detected it approaches the docking station and charges itself for a while
  2. the robot goes out of the charger, takes a picture and then looks around for the first marker (living room); once detected it goes towards the marker until it reaches it, rotates 180 degrees and takes a picture
  3. the robot looks for the next target (kitchen); once detected it goes towards the marker and takes a picture. Then the sequence is repeated.

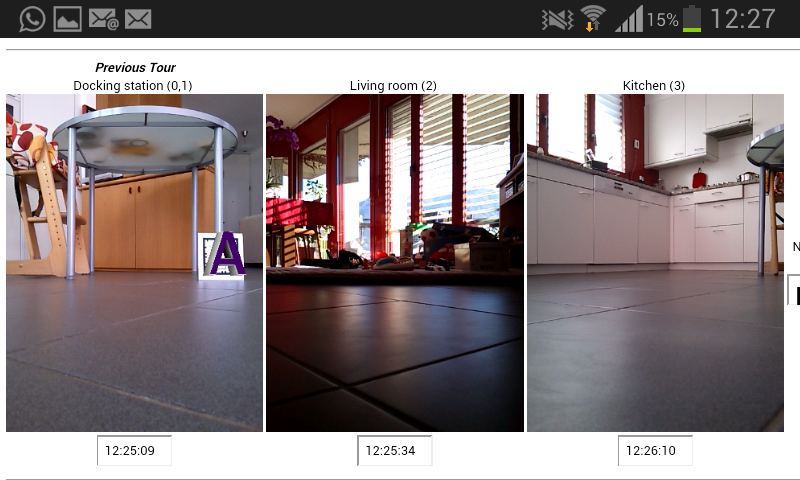

In the "Robot" tab you can see the HTTP address to which to connect in order to see the pictures taken by the robot.
Frame target detection is performed using the Vuforia Augmented Reality SDK (license agreements: https://developer.vuforia.com/legal/license).

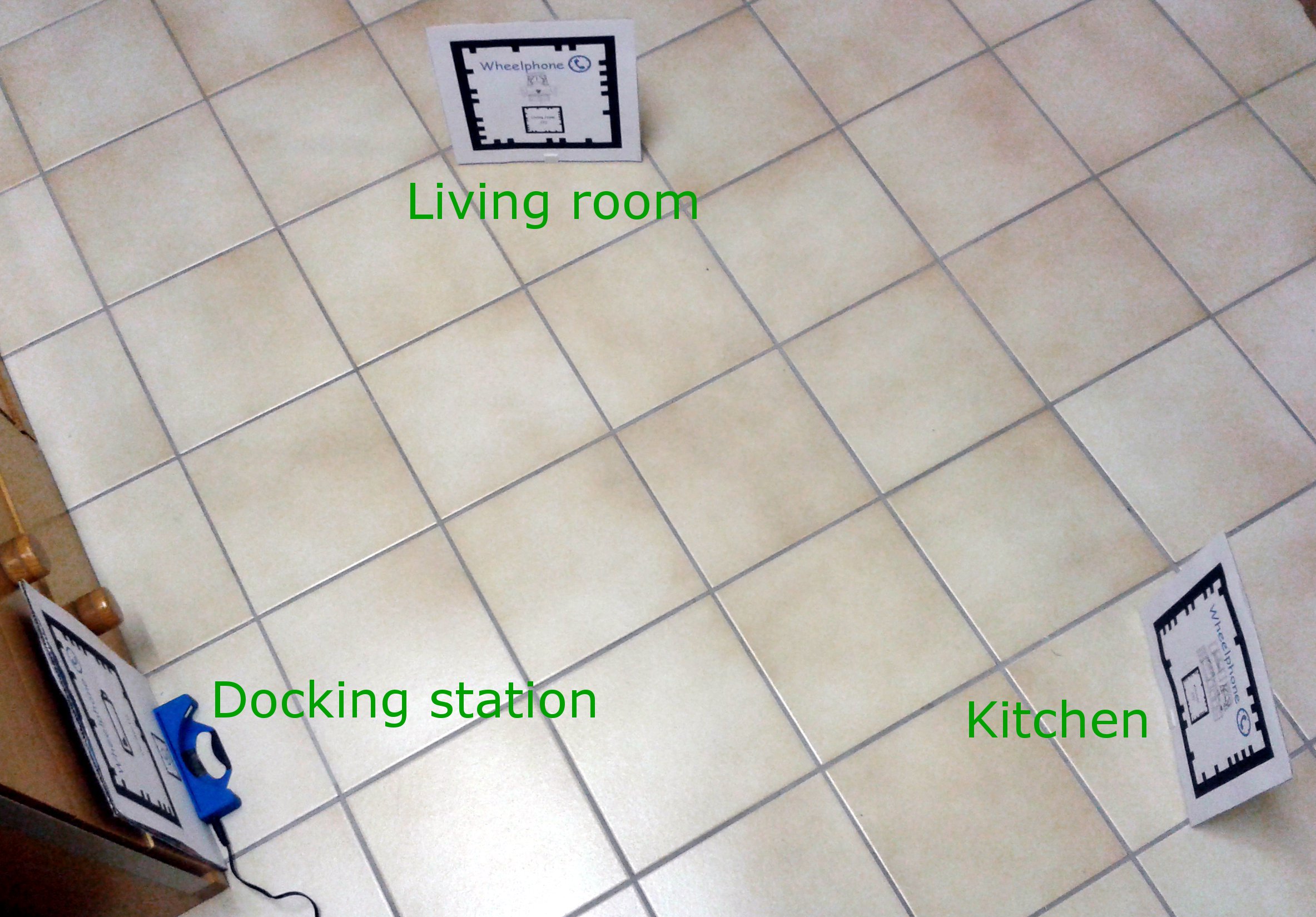

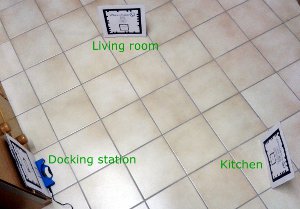

A nice video of the demo can be seen here video. The following image shows the history of a complete tour taken from the HTTP page published by the Wheelphone:

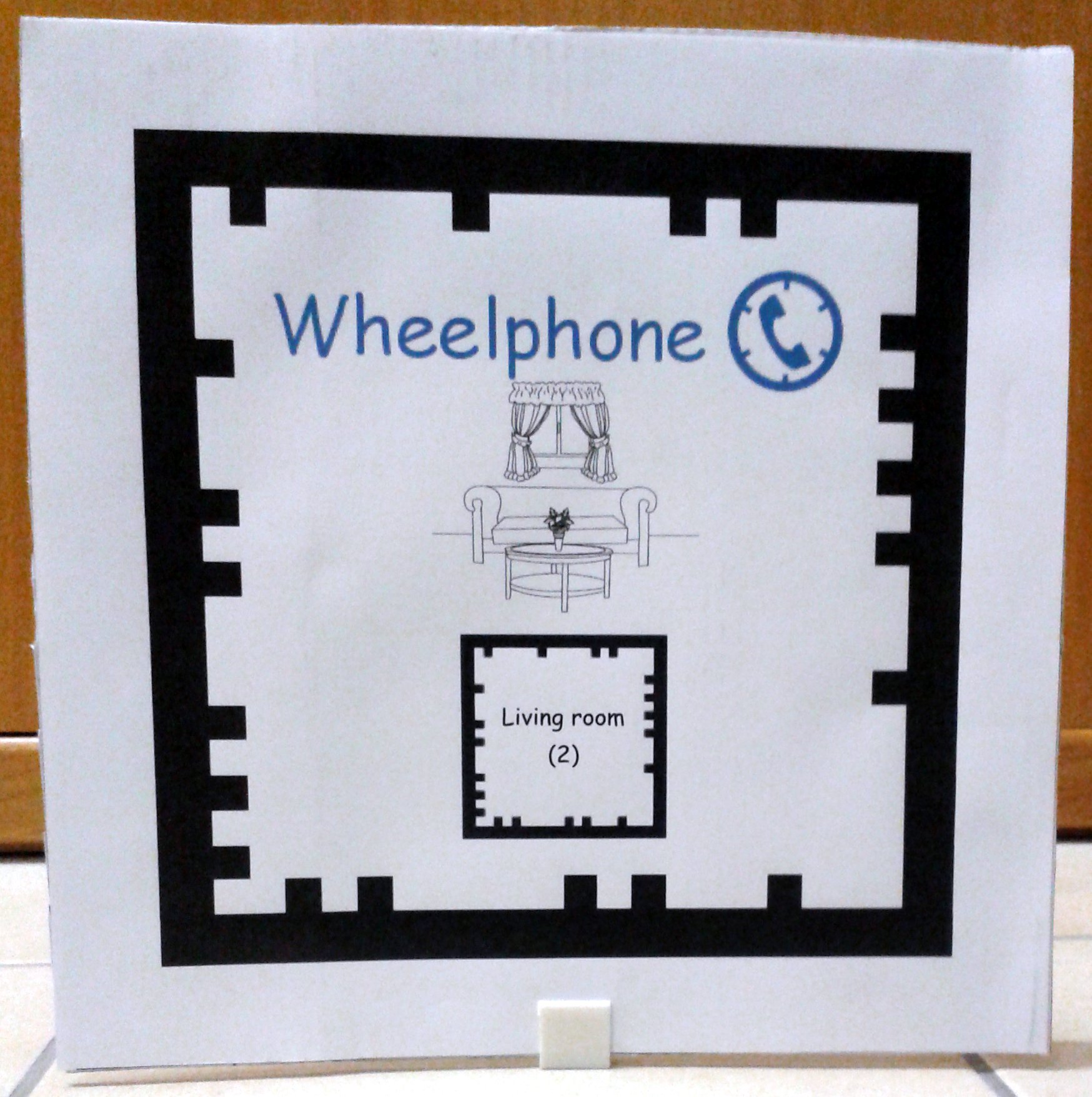

The markers used in the demo can be donwloaded from here: charger station, living room, kitchen.
A similar application was developed also for iPhone, have a look here for more information.

APK
The android application can be downloaded from the Google Play store Wheelphone markers navigation, or directly from WheelphoneTargetNavigation.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneTargetNavigation WheelphoneTargetNavigation

A version of the application without rendering on the phone display (no 3D letter visualized on target position) is available from the following repositoriy; this version was created since the rendering causes the application to be unstable:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneTargetNavigation_no_rendering WheelphoneTargetNavigation_no_rendering

How To
1) prepare the docking station with the marker charger station, the "navigation targets" with markers living room and kitchen and place them in a triangular shape in such a way that form the docking station the robot is able to detect the "living room", from the "living room" the robot is able to detect the "kitchen" and from the kitchen the robot is able to detect the docking station, like shown in the following figures:

2) once the application is started you should see "Connected" on top of the window, otherwise you need to restart the application (back button, turn off the robot, turn on the robot, select the app from the list)
3) the robot start searching (pivot rotation) the marker id 2 (living room); when the robot finds the marker it goes towards it until it is near, then it rotates for about 180 degrees saying what target it found and then takes a picture that will be automatically updated on the web page. In case the marker isn't found then after 30 seconds the robot start searching the next target
4) the searching sequence is: target id 2 (living room), target id 3 (kitchen), target id 0/1 (charger station). When the robot is approaching the charging station it need two id, one big to be detected at long distances and one small used to center itself to the docking station when it is near the charger. If the robot fails to connect to the charger station, then it applies some movements to try making a good contact with the charger; anyway in case after a while it hasn't reach the contact then it search for the next target. In case of success it charges itself for a while (user definable), then it goes out of the charger, rotates for about 180 degrees saying what target it found and then takes a picture.

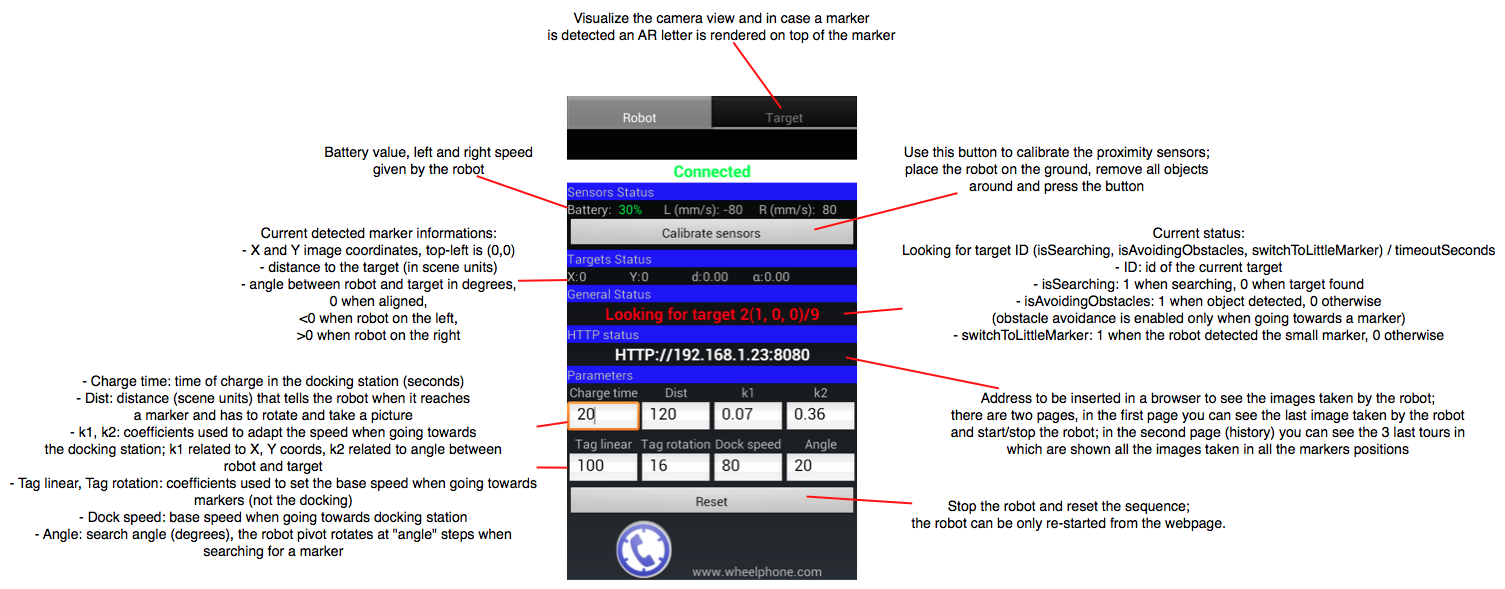

The following figure explains the values and parameters available in the application:

Wheelphone Navigator

Summary
This is a navigation application. It allows the robot to navigate an environment looking for targets while avoiding obstacles. It has two modules to avoid the obstacles: (1)the robot’s front proximity sensors and (2)the camera + Optical Flow.

Requirements building

Requirements running

  • Android API version: 14 (ICE_CREAM_SANDWICH)
  • Back camera
  • OpenCV: 2.4.6 OpenCV mangager (Android app)

Building process

  • This application has some JNI code (C/C++), so it is necessary to have the android NDK to compile the C/C++ code. Once you have the NDK, the C/C++ code can be compiled by running (while at the jni folder of the project):
${NDKROOT}/ndk-build –B

Note: Make sure that the NDKROOT and OPENCVROOT environment variables are set to the NDK and OpenCV SDK paths respectively.

APK
WheelphoneNavigator.apk WheelphoneNavigator

Source

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/Wheelphone_navigator Wheelphone_navigator

How To
How to interact with the application: add at least two targets and then tap on “start”. This makes the robot go between all the targets in its list, while avoiding the obstacles.

Autonomous docking

Wheelphone blob docking

Summary
This demo uses OpenCV to detect a colored blob placed on the charging station; the blob is used to give the robot a direction to follow to reach the docking station. When the robot is near the docking it detect a black line (placed on the ground) and follow it to correctly orient itself towards the charging contacts. The project contains also a stripped version of Spydroid (only HTTP server) that let the user start and stop the demo remotely from a PC or another phone.

Requirements building
Developer requirements (for building the project):

Requirements running
User requirements (to run the application on the phone):

  • the OpenCV package is required to run the application on the phone; on Google Play you can find OpenCV Manager that let you install easily the needed library

APK
The android application can be downloaded from the Google Play store Wheelphone blob docking, or directly from WheelphoneBlobDocking.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneBlobDocking WheelphoneBlobDocking

How To
1) once the application is started the robot start moving around with obstacle avoidance enabled looking for a docking station

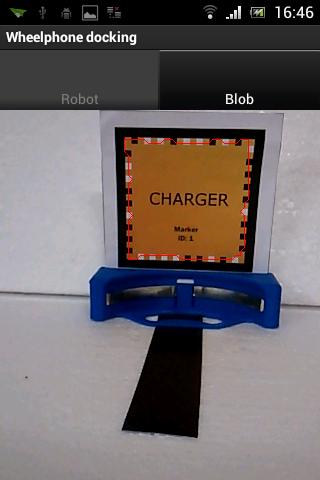

2) take the robot in your hands and press the "Blob tab" that show you the camera view. Point the robot to the docking station and touch on the screen to select the blob to follow as shown in the following figure:

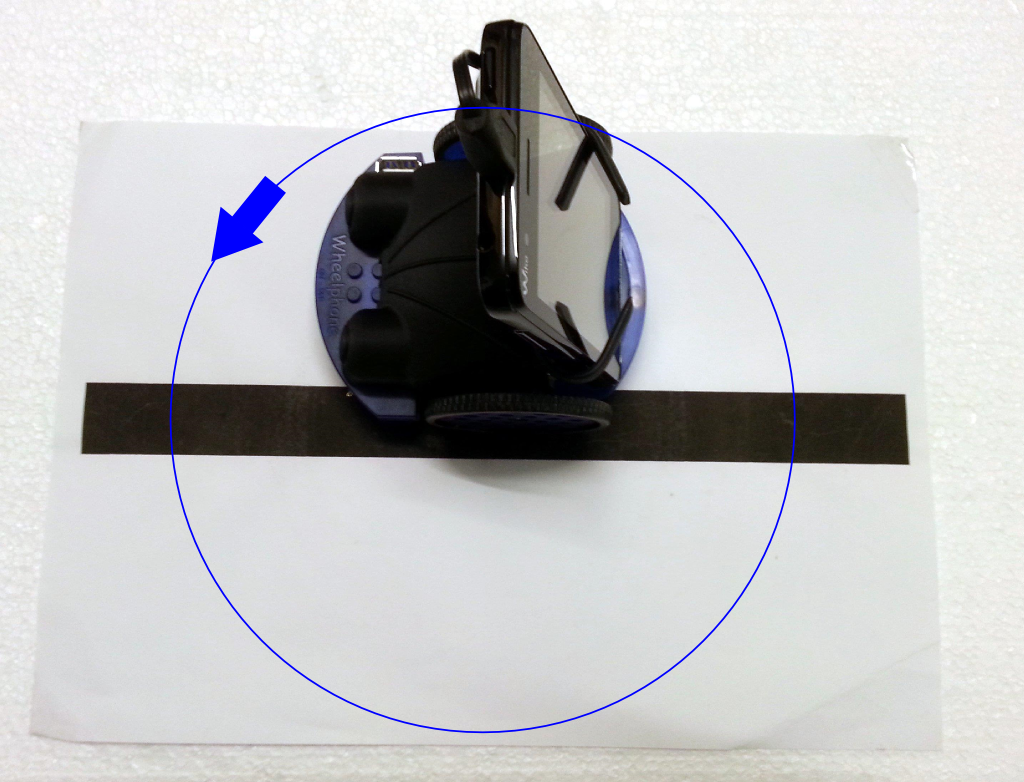

3) place the robot on the ground and press the "Calibrate sensors" button to calibrate the robot in your environment; be sure to remove any object near the robot
4) set a threshold corresponding to the value of the ground sensors related to the black line used to centering to the docking station; if the ground sensor value < threshold then the black line is detected
5) place the robot away from the charger (1 or 2 meters) and let it try to dock itself; when the robot reaches the charging station it will stay there

There is also a web page you can navigate with any browser inserting the address given in the "Robot tab"; in this page you'll see 5 motion commands (forward, backward, left, right, stop); stop is used to stop the robot, the others to start the robot.

Wheelphone target docking

Summary
This demo uses the Vuforia Augmented Reality SDK to detect a frame target placed on the charging station; the target is used to give the robot a direction to follow to reach the docking station. With this library you get also the orientation of the robot respect to the target, that is respect to the charger; with this information it's easier for the robot to be aligned to the charging station before reaching it. The project contains also a stripped version of Spydroid (only HTTP server) that let the user start and stop the demo remotely from a PC or another phone.
A video of the this demo can be seen here video.

Requirments building
Developer requirements (for building the project):

APK
The android application can be downloaded from the Google Play store Wheelphone target docking, or directly from WheelphoneTargetDocking.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneTargetDocking WheelphoneTargetDocking

How To

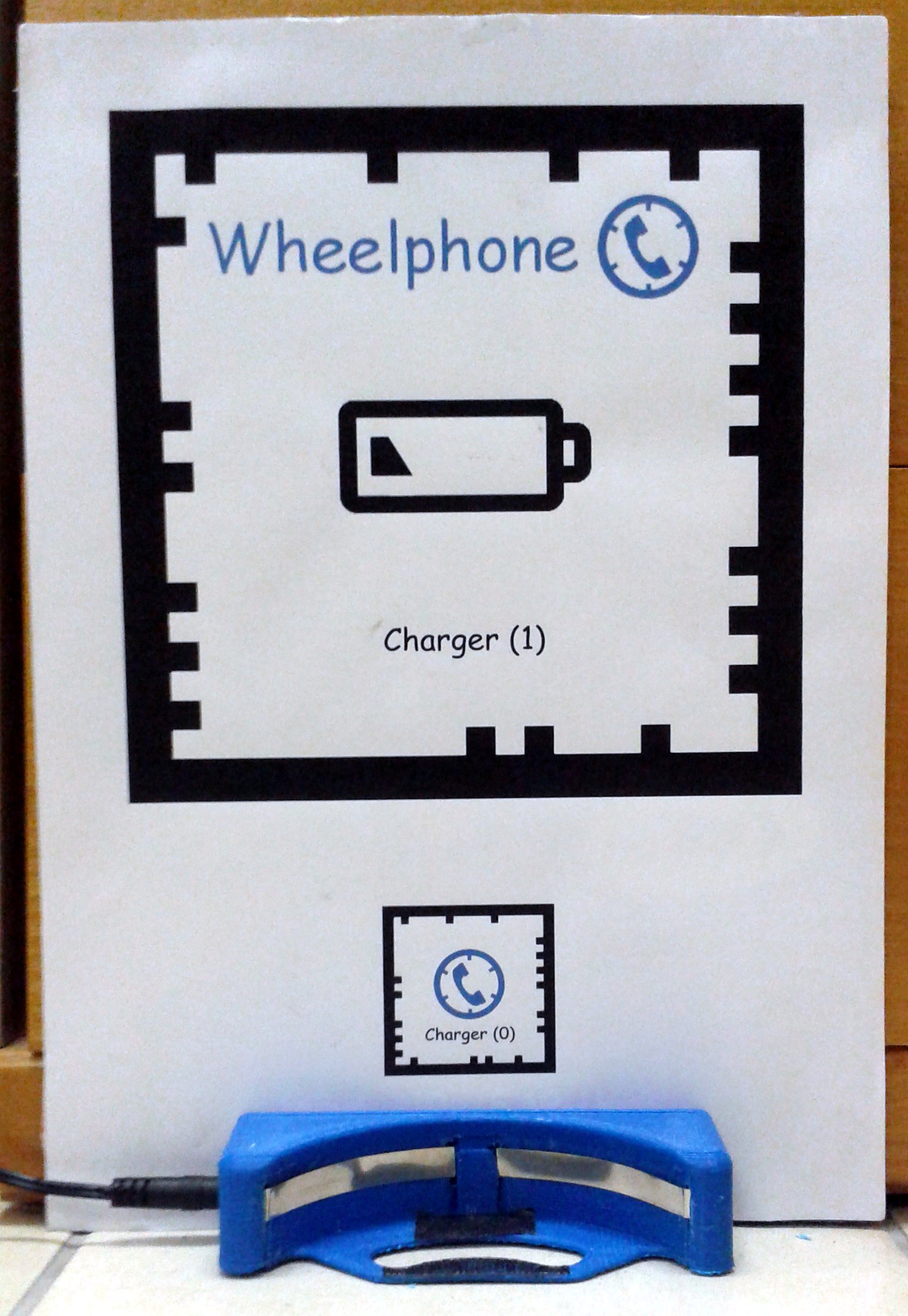

1) prepare the docking station with the marker charger station as shown in the following figure:

2) once the application is started you should see "Connected" on top of the window, otherwise you need to restart the application (back button, turn off the robot, turn on the robot, select the app from the list)
3) the robot starts searching for the charging station rotating on place at little steps
4) take the robot on your hands, place it on the ground and press "Calibrate sensors" (remove any object near the robot); if the phone camera is not centered you can also set a camera offset (move the slider in the position of the phone camera)
5) place the robot away from the charger (1 or 2 meters) and let it try to dock itself; when the robot reaches the charging station it will stay there

There is also a web page you can navigate with any browser inserting the address given in the "Robot tab"; in this page you'll see 5 motion commands (forward, backward, left, right, stop); stop is used to stop the robot, the others to start the robot.

The "Target tab" shows the camera view and when a marker is detected a nice augmented reality letter is visualized; this can be used to know the maximum distance at which the charging station can be still detected.

Remote control

Telepresence with Skype

Summary
Wheelphone allows worldwide telepresence simply using Skype. One can have a real time video feedback from a remote place where the robot is moving. To control the Wheelphone robot movement, just open the Skype numpad and pilot the robot while seeing the real time images.
A video of the this demo can be seen here video.

How To

  1. start Skype application on the phone and login
  2. connect the sound cable to the phone in order to send commands from Skype to the robot; make sure that Skype recognizes the robot as earphone, if this isn't the case try to disconnect and reconnect the audio cable
  3. remove the micro USB cable from the phone because USB communication has priority over the audio communication at the moment
  4. enable the "Answer call automatically" option in the Skype settings in order to automatically respond to incoming call and be able to immediately control the robot
  5. start the Skype application in the computer (or alternatively from another phone), login and make a video call to the account you use on the phone connected to the robot (if you are in the same room disable the microphone)

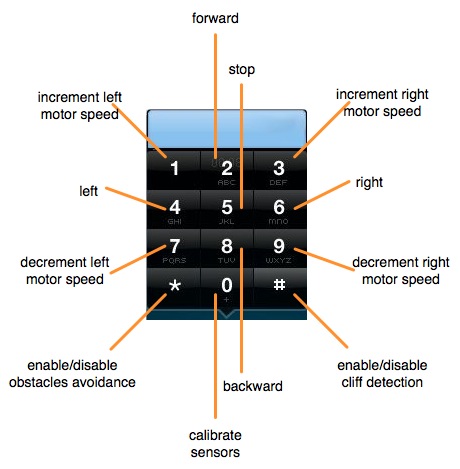

  6. now you should be able to get the robot view; open the Skype numpad on the computer side and use it to move the robot, the commands are shown in the following figure:


Wheelphone remote

Summary

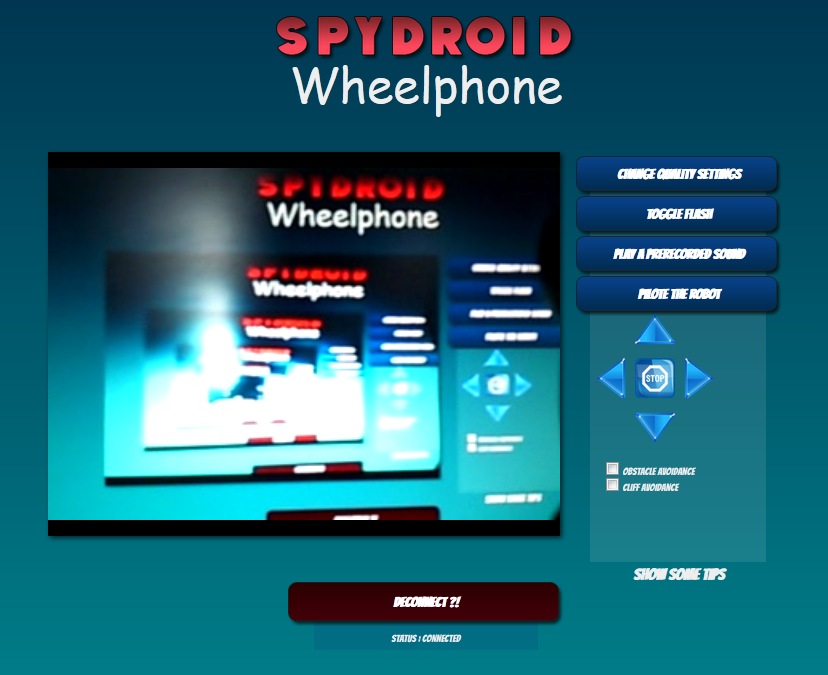

The robot can be easily controlled via a browser after having configured the computer and the robot to be in the same wifi network. The project is based on the spydroid (v6.0) application, refer to https://code.google.com/p/spydroid-ipcamera/ for more information.

APK
The android application can be downloaded from the Google Play store Wheelphone remote, or directly from WheelphoneRemote.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneRemote WheelphoneRemote

How To
1) make sure to have the latest VLC plugin installed on the computer; unfortunately there is no VLC plugin for mobile phone so at the moment the video cannot be visualized if a connection phone to robot is performed (only movment commands are available).
2) connect the phone and the computer within the same network
3) once the application is started you'll see the address to be inserted in the browser to be able to control the robot; open a browser and insert the address; if all is working well you'll see the following html page:

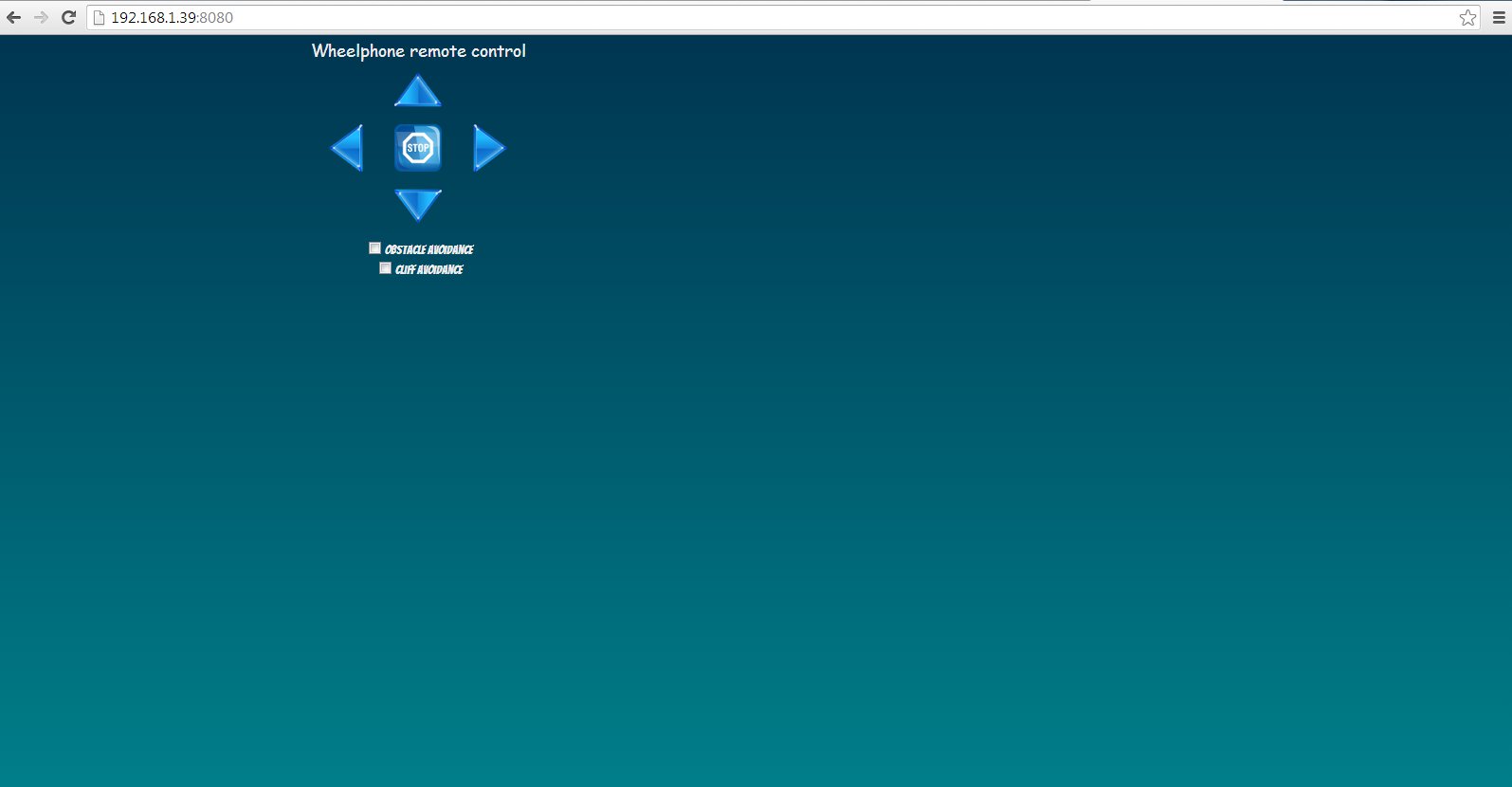

4) click on the "Connect" button in the html page and you should receive the video stream; on the right you've some commands to send to the robot, i.e. sounds, motions, ...

Wheelphone remote mini

Summary
This is a stripped version of Wheelphone remote that contains only an HTTP server used to receive the motion commands for the robot. It is implemented to have a minimal interface to pilot the robot both from the PC and another phone.

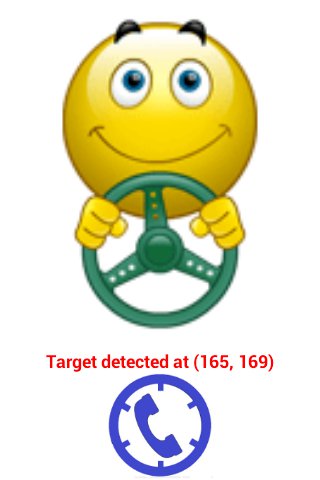

Moreover the Vuforia Augmented Reality SDK is used to track a marker when it is in the robot view (pivot rotation at the moment).

APK
The android application can be downloaded from the Wheelphone remote mini, or directly from WheelphoneRemoteMini.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneRemoteMini WheelphoneRemoteMini

it is based on the Spydroid application.

How To
1) connect the phone and the computer within the same network

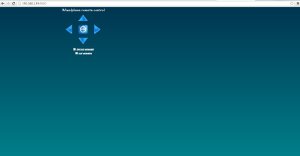

2) once the application is started you'll see the address to be inserted in the browser to be able to control the robot; open a browser and insert the address; if all is working well you'll see the following html page:

3) press the "Start animation" button to start the visualization of various images that will change based on the commands sent to the robot through the html page; coupled with the images there will be also sounds related to motion commands

If you try to raise the Wheelphone robot, or place an object near the front proximity sensors you'll see a reaction from the robot.

Moreover you can place a marker (ID0 or ID1) on front of the robot and the robot will start to follow it (pivot rotation only), moreover information about the target will be shown on the screen, like in the following figure:

Telepresence with Skype and Wheelphone remote mini

Summary
Wheelphone allows worldwide telepresence by using Skype for audio/video coupled with the Wheelphone remote mini application to issue motion commands.
In order to access the Wheelphone remote mini webserver from Internet, we configured the port forwarding rule on the router through the "UPnP - Internet Gateway Device" protocol; this is done automatically by an application (see following section for the source code).

Source
The source code of the "UPnP-IGD" application is available from UPnP-IGD.zip. This application setup a forwarding rule to the current device on port 8080.

How To

  1. start Skype application on the phone and login
  2. connect the micro USB cable to the phone and start the Wheelphone remote mini application
  3. enable the "Answer call automatically" option in the Skype settings in order to automatically respond to incoming call and be able to immediately control the robot; if this option is not available you would need to answer manually the call
  4. start the application "UPnP-IGD" (it requires that UPnP protocol is enabled in the router); the application will show the public address to enter in order to reach the Wheelphone remote mini webserver
  5. start the Skype application in the computer (or alternatively from another phone), login and make a video call to the account you use on the phone connected to the robot
  6. on the same computer open a browser and enter the public address given by the "UPnP-IGD" application
  7. now you should be able to get the robot view from skype and you can control the robot through the browser

Interactive demos

Wheelphone Pet

Summary
This is a PET application. It makes the robot behave like a pet. A behavior module allows it to show expressions and behave accordingly. Additionally has a face-tracking and text-to-speech modules to be able to interact with the environment.

Requirements building

  • Eclipse: 4.2
  • Android SDK API level: 18 (JELLY_BEAN_MR2)
  • Android NDK: r9 Android NDK

Building process:

  • This application has some JNI code (C/C++), so it is necessary to have the android NDK to compile the C/C++ code. Once you have the NDK, the C/C++ code can be compiled by running (while at the jni folder of the project):
${NDKROOT}/ndk-build –B

Note: Make sure that the NDKROOT environment variable is set to the NDK path

Requirements running

  • Android API version: 14 (ICE_CREAM_SANDWICH)
  • Front facing camera

APK
WheelphonePet.apk WheelphonePet

Source

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/Wheelphone_pet Wheelphone_pet

State:

  • Speech recognition has been partially implemented using googles API. It would be better to use cmusphinx.
  • The FaceExpressions module, used to express the robot state, could be extended to support animations instead of static images. For this purpose, libgdx can be used.

How To
How to interact with the application: start the application and stand where the phone can see your face.

Wheelphone Alarm

Summary
This is an alarm application that interfaces with the Wheelphone to provide a playful experience when the alarm rings.

Requirements building

  • Eclipse: 4.2
  • Android SDK API level: 18 (JELLY_BEAN_MR2)

Building process:

  • Nothing special: download the code, import to Eclipse and run.

Requirements running

  • Android API version: 14 (ICE_CREAM_SANDWICH)
  • Proximity sensor on the phone

APK
Wheelphone alarm WheelphoneAlarm

Source

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/Wheelphone_alarm Wheelphone_alarm

State: It is a concept app, so it actually does not actually ring.

How To
It is possible to set the alarm time, the escape speed and a delay in which the robot will be stopped before starting escaping around when ringing. The alarm can be set to anytime within the next 24 hours. When the alarm is ringing, the phone proximity sensor will also detect the approaching hand and will make the robot run away from the hand. In order to setup an alarm follow these steps:

  1. once the application is started you should see "Connected" on top of the window, otherwise you need to restart the application (back button, turn off the robot, turn on the robot, select the app from the list)
  2. setup an alarm (or use the "quick alarm" button to set an alarm in the next 5 seconds); choose also the desired escape speed and waiting time
  3. press the home button to leave the application running in the background, this way you can still use your phone to do others thinks; be aware not to press the back button because you'll terminate the application
  4. press the power button to put the phone in sleep and put the phone on its charger station (hint: place the robot near your bed)
  5. wake up!

The alarm song that is played is the one chosen in the system.

Basic demos

Monitor advanced

Summary
This is the Wheelphone demo that shows you all the sensors values (proximity, ground, battery) and let you move the robot and sets some onboard behaviors. This is the first application that you will probably install to start playing with the robot.

APK
The android application can be downloaded from the Google Play store Wheelphone, or directly from Wheelphone.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/Wheelphone Wheelphone

How To
The application has two tabs, in left one the sensors information are displayed, in the right one you can choose to start the "stay-on-the-table" behavior that basically let the robot move safely on any table (not a black one though) without the risk to falling down (put the robot on the table before starting the behavior).

Wheelphone odometry

Summary
This is a demo that can be used as a starting point to work with the odometry information received from the robot. The application let the robot either rotate in place by an angle (degrees) specified by the user or move forward/backward for a distance (cm) specified by the user.

APK
The android application can be downloaded directly from WheelphoneOdomMotion.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneOdomMotion WheelphoneOdomMotion

How To

  1. once the application is started you should see "Connected" on top of the window, otherwise you need to restart the application (back button, turn off the robot, turn on the robot, select the app from the list)
  2. set the movement speed in the "Settings" section (given in mm/s)
  3. now you can decide whether to do a rotation (robot rotates on place for the given degrees) or a linear movement (robot goes forward for the given distance in cm); set the desired value and press the related "GO" button based on the motion you want to do
  4. if you want to stop the robot you can press the "Stop robot" button in any moment

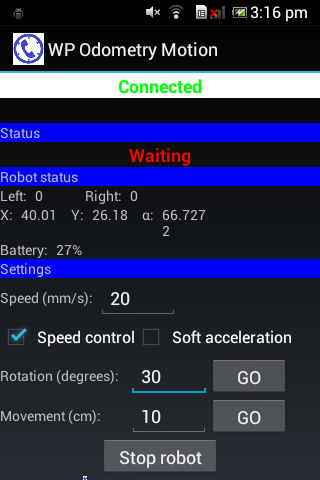

The following figure show the interface of the application:

In the "Robot status" section are visualized: current left and right speed given to the robot (mm/s); the absolute position X (mm, pointing forward), Y (mm, pointing left), theta (degrees); the battery level

Wheelphone tag detection

Summary
This is a demo that can be used as a starting point to work with the vuforia tag detection library (https://developer.vuforia.com/). You can use this application to get useful information about the tag detected such as distance and angle; you can analyse the performance of the tag detection for instance setting a speed and seeing the maximum speed at which the robot can still detect the tag rotating in place, or seeing the maximum distance at which the phone can detect the tag.

APK
The android application can be downloaded directly from WheelphoneTargetDebug.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneTargetDebug WheelphoneTargetDebug

How To

  1. once the application is started you should see "Connected" on top of the window, otherwise you need to restart the application (back button, turn off the robot, turn on the robot, select the app from the list)
  2. now you can either take the robot in your hands and manually debug target detection or set motors speed and see how perform target detection at various speeds (e.g. max rotation speed in which the marker is still detected)

Actually you can also start the application without being connected to the robot only for tracking debugging purposes.

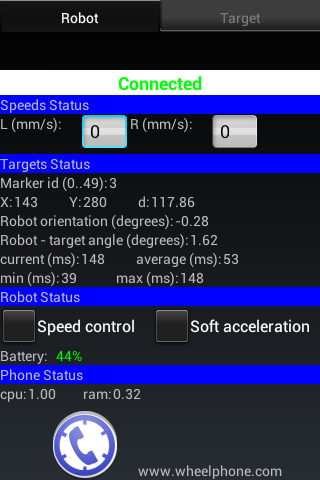

The following figure show the interface of the application:

  • in the "Speed status" you can set the motors speed (mm/s)
  • in the "Target status" you have the current marker id detected (from 0 to 49), the X and Y screen coordinates of the marker center, the distance (scene units) from the marker, the orientation of the robot (degrees) and the angle between the robot and the target (degrees); moreover you receive timing informations about the tracking processing (min, max, current, average in ms)
  • in the "Robot status" you can enable/disable speed control and soft acceleration and you have the battery value
  • in the "Phone status" you get information about CPU and RAM usage

Wheelphone Follow

Summary
This is a follow the leader application. It allows the robot to follow an object in front of it using the front facing proximity sensors.

Requirements building

  • Eclipse: 4.2
  • Android SDK API level: 18 (JELLY_BEAN_MR2)

Building process:

  • Nothing special: download the code, import to Eclipse and run.

Requirements running

  • Android API version: 14 (ICE_CREAM_SANDWICH)

APK
Wheelphone follow

Source

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/Wheelphone_follow Wheelphone_follow

How To
Start the application and place something within 5cm in front of the robot. This will make the robot start following the object.

Wheelphone Recorder

Summary
This is a recording application. It makes the robot record while it moves. The purpose of this application is to provide the perspective of the robot while it is moving.
Be aware that this application is not stable, take it as a starting point.
For a workaround on how to record a video directly from the robot refer to section [].

Requirements building

  • Eclipse: 4.2
  • Android SDK API level: 18 (JELLY_BEAN_MR2)

Requirements running

  • Android API version: 14 (ICE_CREAM_SANDWICH)
  • Back camera

Building process:

  • Nothing special: download the code, import to Eclipse and run.

APK
Wheelphone recorder

Source

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/Wheelphone_recorder Wheelphone_recorder

How To
Tap on the screen to start and stop the recording/movement. The recorded video is QUALITY_480P (720 x 480 MP4), saved into the sdcard in the following path: /DCIM/wheelphone_capture.mp4.

Wheelphone Faceme

Summary
This is face-tracking application. It keeps track of the position of one face using the front facing camera, then controls the robot to try to face always the tracked face.

Requirements building

  • Eclipse: 4.2
  • Android SDK API level: 18 (JELLY_BEAN_MR2)
  • Android NDK: r9 Android NDK

Building process:

  • This application has some JNI code (C/C++), so it is necessary to have the android NDK to compile the C/C++ code. Once you have the NDK, the C/C++ code can be compiled by running (while at the jni folder of the project):
${NDKROOT}/ndk-build –B

Note: Make sure that the NDKROOT environment variable is set to the NDK path

Requirements running

  • Android API version: 14 (ICE_CREAM_SANDWICH)
  • Front facing camera

APK
Wheelphone faceme

Source

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/Wheelphone_faceme Wheelphone_faceme

State: Could be extended to allow setting the rotation/acceleration constant, and draw a square on top of the tracked face.

How To
How to interact with the application: start the application and stand where the phone can see your face.

Blob following

Summary
The demo shows the potentiality of having a mobile phone attached to the robot, in this example the phone is responsible of detecting a color blob and to send commands to the robot in order to follow it.
A video of the this demo can be seen here video.

Requirements building
Developer requirements (for building the project):

Requirements running
User requirements (to run the application on the phone):

  • the OpenCV package is required to run the application on the phone; on Google Play you can find OpenCV Manager that let you install easily the needed library

APK
The android application can be downloaded from WheelphoneBlobDetection.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneBlobDetection WheelphoneBlobDetection

It's based on the blob-detection example contained in the OpenCV-2.4.2-android-sdk.

How To
Once the application is started you will see that all the values are 0; that's normal, you have to select the blob to follow in order to start the hunting. Select the "Blob tab" and touch on the blob you want to follow; the robot should start moving, otherwise you need to restart the application (back button, turn off the robot, turn on the robot, select the app from the list).

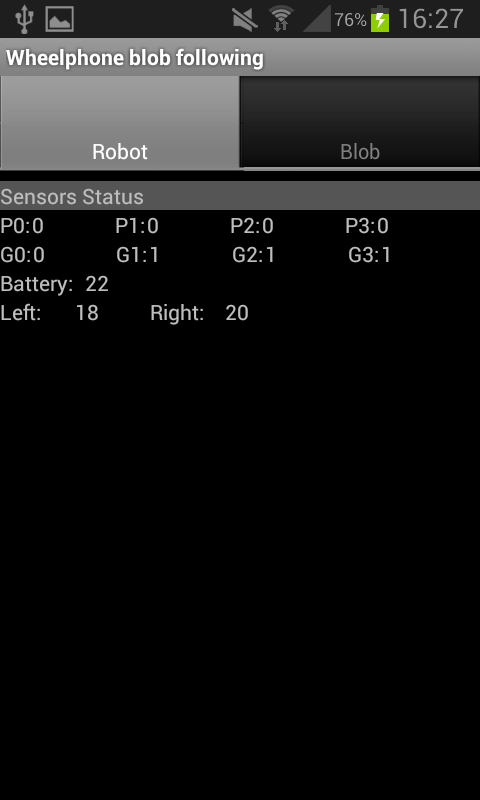

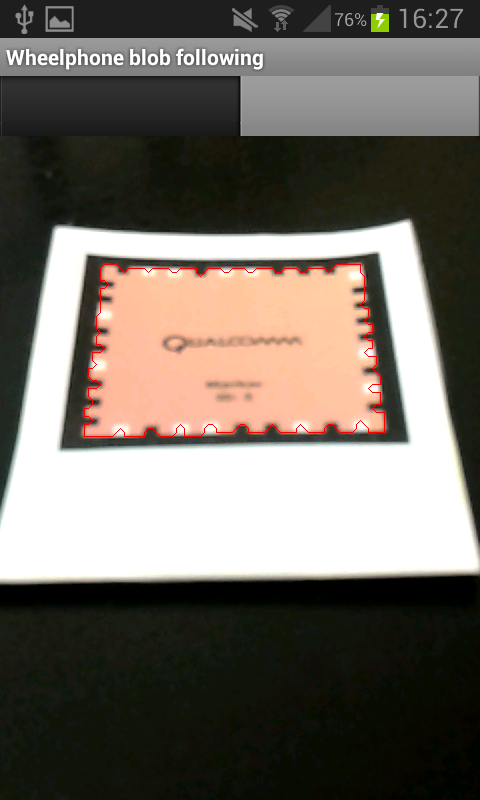

The following figures show the interface of the application:

Line following

Summary
This demo shows one of the possible behaviors that can be programmed on the phone, in particular it instructs the robot to follow a line. The threshold and logic (follow a black or a white line) can be choosen from the application.

APK
The android application can be downloaded from WheelphoneLineFollowing.apk.

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneLineFollowing WheelphoneLineFollowing

How To

  1. once the application is started you should see "Connected" on top of the window, otherwise you need to restart the application (back button, turn off the robot, turn on the robot, select the app from the list)
  2. the robot start moving immediately, thus take it in your hands for doing some settings
  3. set the base speed of the robot in the bottom of the window, section "Settings"
  4. set the threshold of the black line you want to follow, basically when the ground value is smaller than the threshold it means that a line is detected; use the ground sensors values reported in the "Ground sensors" section to help you choose the best value
  5. place the robot on the ground and press the button "Calibrate sensors", remove all object near the robot before doing that; this is needed to be sure that the front proximity sensors are well calibrated since the onboard obstacle avoidance is also enabled by default
  6. put the robot near a black line and check that it can follow it

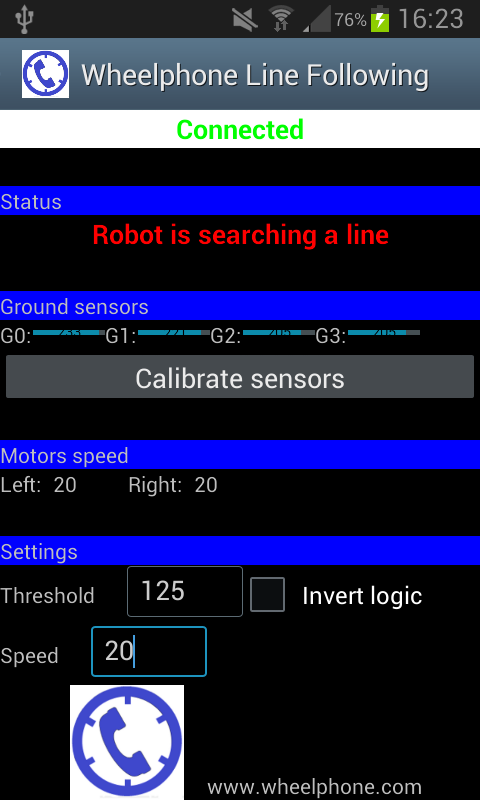

The following figure shows the interface of the application:

Webots

Webots allows you to simulate the Wheelphone robot and program different behaviors for the robot in simulation before transferring them onto the real robot. You can download the Wheelphone simulation files from wheelphone.zip (which includes several demo programs) as well as the corresponding student report.

Bootloader

The robot firmware can be easily updated through this app when a new version is available. Refer to the getting started guide for more information on how to update your robot.
The project is based on the example Web Bootloader Demo - OpenAccessory Framework contained in the Microchip Libraries for Applications.

Newest firmware

This bootloader version has to be used to update the robot to the last developed firmware with all new features and bugs corrected. Pay attention that this version breaks compatibility with old applications, section Apps shortcut list shows the list of compatible applications that depend on the Wheelphone library.
APK
The android application can be downloaded directly from WheelphoneBootloader.apk (firmware rev 3.0).

Source
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneBootloader WheelphoneBootloader

Older firmwares

This bootloader has to be used to return to the old firmware that is compatible with the applications developed before the Wheelphone Library release.
The android application can be downloaded from wheelphone-bootloader.apk (firmware rev 2.0).
The source code of the application can be download from wheelphone-bootloader.zip (Eclipse project)

Hardware revision 0.1

This bootloader has to be used for robots numbered from 10 to 15; the firmware that will be uploaded to the robot is the same as described in section Newest firmware.
The android application can be downloaded from wheelphone-bootloader.apk (firmware rev 2.0).
The source code of the application can be download from wheelphone-bootloader.zip (Eclipse project)

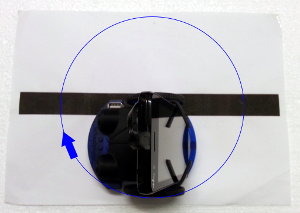

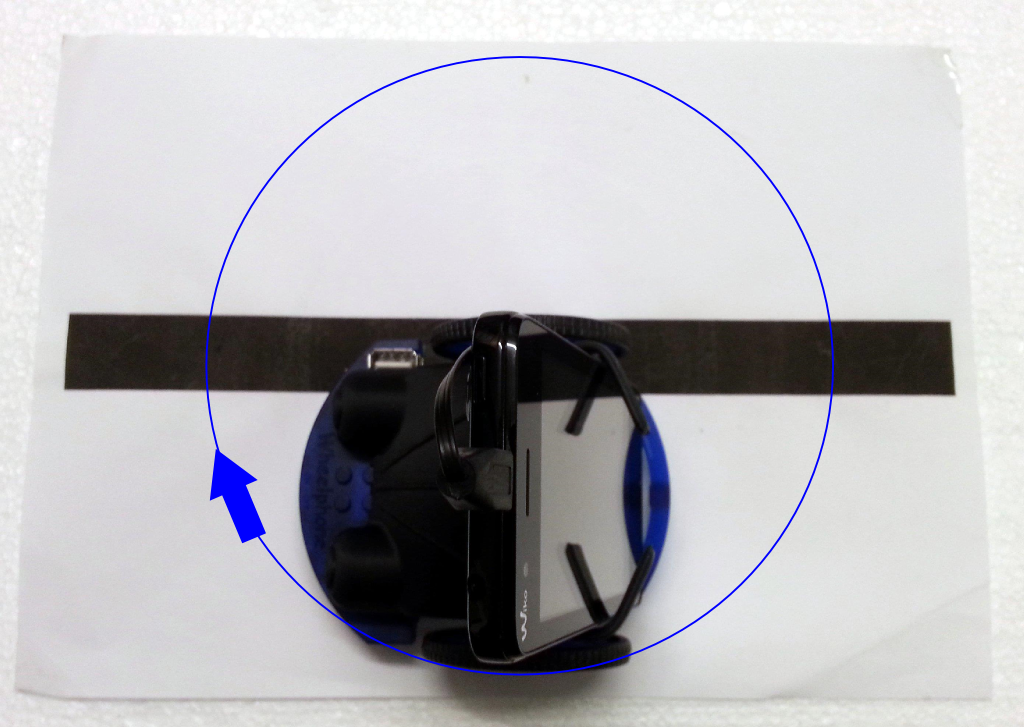

Calibration

Since the motors can be slightly different a calibration can improve the behavior of the robot in terms of speed.
An autonomous calibration process is implemented onboard: basically a calibration is performed for both the right and left wheels in three modes that are forward with speed control enabled, forward with speed control disabled and backward with speed control disabled. In order to let the robot calibrate istelf a white sheet in which a black line is drawed is needed; the robot will measure the time between detection of the line at various speed. The calibration sheet can be downloaded from the following link calibration-sheet.pdf.
A small application was developed to accomplish the calibration that can be downloaded from WheelphoneCalibration.apk; simply follow the directions given.
The source code is available from the following repository:

svn checkout https://github.com/gctronic/wheelphone-applications/trunk/android-applications/WheelphoneCalibration WheelphoneCalibration
