1 Introduction

Aseba is a set of tools which allow novices to program robots easily and efficiently, refer to https://www.thymio.org/en:start for more information.

1.1 Prerequisites

The following steps neeed to be done only once:

  1. The communication between Aseba and Elisa-3 is done through the USB (serial communication is used) cable so you need to install the driver, refer to section Elisa-3 requirements; in the future we will maybe add RF support too
  2. Download (Windows, Linux, Mac) and install Aseba version 1.6.1
  3. Download the Elisa-3 target for Aseba elisa3-aseba.hex and upload it to the robot (refer to section Elisa-3 Programming)

1.2 Connection with AsebaStudio

The following steps explain how to start playing with the Aseba Studio:
1. Connect the robot to the computer if not already done and turn it on
2. Download the following script based on your platform and modify its content specifying the AsebaStudio installation folder and the robot port:

  • Windows: asebaswitch_elisa3.zip; decompress it and spcifiy the installation folder (e.g. C:\Program Files (x86)\AsebaStudio) and the port number (e.g. 10 for COM10)
  • Linux / Mac OS: asebaswitch_elisa3.sh; specifiy the installation folder (e.g. /usr/bin in Linux or /Applications/Aseba/bin in Mac OS) and the port (e.g. /dev/ttyUSB0 in Linux or /dev/cu.usbserial-XXXXX in Mac OS)

3. Start the script:

  • Windows: double click on the bat file
  • Linux / Mac OS: set the script to be executable with the command chmod +x asebaswitch_elisa3.sh and then execute it ./asebaswitch_elisa.sh

4. Start AsebaStudio and select Network(TCP), insert localhost as Host and specify 33333 as Port to open the connection with the robot. The final target string must be tcp:host=localhost;port=33333
5. If the connection is correctly established you should see the Elisa-3 variables on the left side of AsebaStudio as shown in the following figure:

Have a look also at the following video (you must use the script instead of manually issueing the command as in the video):

1.3 Simple test

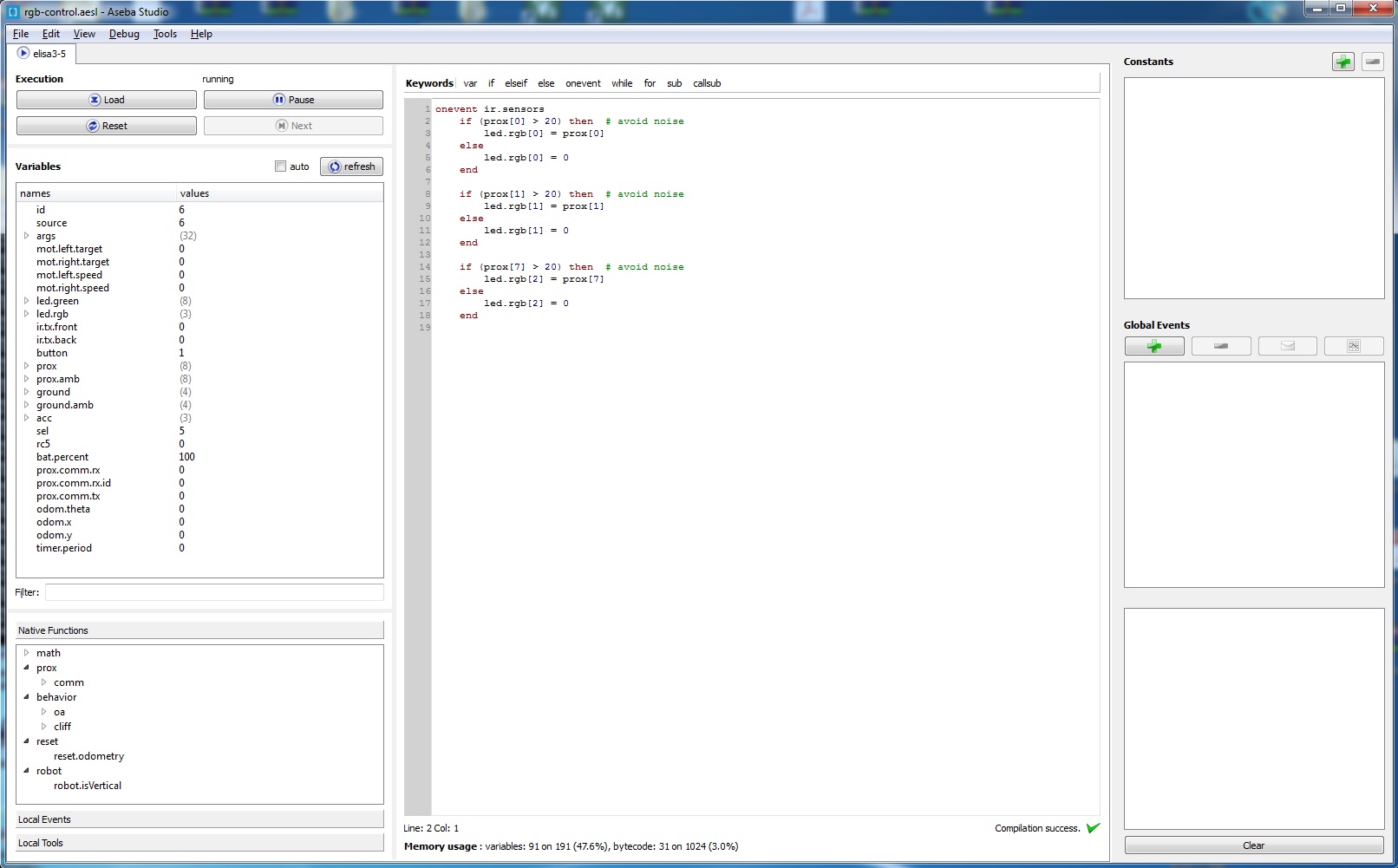

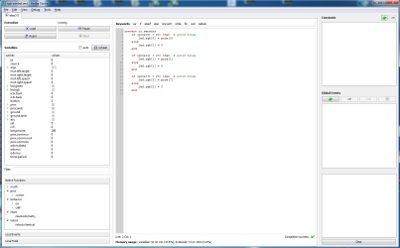

Once the connection is opened click on the checkbox auto to start updating the sensors data automatically; we can now interact with the robot, for instance on the left side we can see all the sensors values (proximity, ground, accelerometer, ...) and we can change the motor speed and turn on/off all the leds.

2 Software

First of all hava a look at some of the examples proposed in the following section AsebaStudio examples.
Then when you're ready you can start programming the robot on your own, refer to section Programming interface; moreover you can have a look at https://www.thymio.org/en:start for more information.
Pay attention that you have 100 bytes availables for your script due to memory constraints.
If you want to have a look behind the scene refer to section Contribute to the Elisa-3 Aseba target.

2.1 AsebaStudio examples

You can download all the following examples from aseba-elisa3-examples.zip; in order to launch an example follow these steps:

  1. place the robot selector in position 5. When the robot is turned on, the position of the selector (from 0 to 9) define the node name in AsebaStudio, in our case the node name will be elisa3-5 (where 5 is the selector position)
  2. extract the zip, the directory contains some file with aesl extension, this is the AsebaStudio code extension
  3. connect the robot with AsebaStudio as explained previously
  4. click on menu File => Open... and select one of the examples extracted from the zip
  5. click on button Load and then on Run; now the code is running on the robot but it isn't stored in EEPROM, thus when you turn off the robot it returns to its initial state

If you want to save the program in memory you need to click on Tools => Write the program(s)... => inside the elisa3 and wait for the programming termination (the green leds around the robot will be turned on while the memory is written); pay attention to uncheck the auto update of the robot variables in AsebaStudio before starting the writing (with the auto update enabled the writing could block).

2.1.1 Simple obstacle avoidance

var i = 1
while (i==1) do
	if ((prox[0] > 50) or (prox[1] > 50) or (prox[7] > 50)) then
		mot.left.target = -20
		mot.right.target = 20
	else
		mot.left.target = 20
		mot.right.target = 20
	end
end

To fully see the results of this example you need to write the code into the robot. Then let it move with some objects around.

2.1.2 RGB control

onevent ir.sensors
	if (prox[0] > 20) then	# avoid noise
		led.rgb[0] = prox[0]
	else
		led.rgb[0] = 0
	end

	if (prox[1] > 20) then	# avoid noise
		led.rgb[1] = prox[1]
	else
		led.rgb[1] = 0
	end

	if (prox[7] > 20) then	# avoid noise
		led.rgb[2] = prox[7]
	else
		led.rgb[2] = 0
	end

Once the code is loaded on the robot you can "control" the intensity of the red, green and blue with the prox[0], prox[1] and prox[7] respectively. Try to get the primary and secondary colors (https://en.wikipedia.org/wiki/Primary_color)...hint: you need two fingers.

2.1.3 Working with events

var color = 0

onevent ir.sensors
	led.green[0] = 1 - led.green[0]
	led.green[2] = 1 - led.green[2]
	led.green[4] = 1 - led.green[4]
	led.green[6] = 1 - led.green[6]

onevent acc
	led.green[1] = 1 - led.green[1]
	led.green[3] = 1 - led.green[3]
	led.green[5] = 1 - led.green[5]
	led.green[7] = 1 - led.green[7]

onevent timer
	led.rgb[color] = 255 - led.rgb[color]

onevent button
	if (color == 2) then
		color = 0
	else
		color++
	end
	led.rgb[0] = 0
	led.rgb[1] = 0
	led.rgb[2] = 0

The green leds shows the update frequency of the proximity and accelerometer sensors (you can measure it with an oscilloscope if you have one). You can change the value of the variable timer.period to change the frequency of the RGB LED, the resolution is 1 ms (e.g. by putting 1000 you'll get the RGB LED blinking at 1 Hz). Moreover you can try pressing the button and see what happen (probably you will deduce from the code...).

2.1.4 Remote control

onevent rc5
	if rc5 == 2 then	# forward
		mot.left.target = 20
		mot.right.target = 20
	elseif rc5 == 5 then	# stop
		mot.left.target = 0
		mot.right.target = 0
	elseif rc5 == 8 then	# backward
		mot.left.target = -20
		mot.right.target = -20
	elseif rc5 == 4 then	# left
		mot.left.target = 0
		mot.right.target = 20
	elseif rc5 == 6 then	# right
		mot.left.target = 20
		mot.right.target = 0
	else	# error
		led.rgb[0] = 255
	end

To fully see the results of this example you need to write the code into the robot. Maybe you should adapt the values used for the various motions and then you can for sure extend the functionalities using others codes (e.g. change RGB LED color).

2.1.5 Simple local communication

In this example we need to connect two robots at the same time to AsebaStudio, to accomplish this asebaswitch need to be called with a different command that is:
asebaswitch -d -v "ser:port=104;baud=57600;stop=1;parity=none;fc=none;bits=8" "ser:port=69;baud=57600;stop=1;parity=none;fc=none;bits=8"
Basically there are two targets instead of one; you need to specify the correct port number for both the robots. Moreover you need to place the robot receiver selector in position 5 and the robot transmitter selector to another position (from 0 to 9). Both the robots will blink if the connection is correctly opened.
Load the following code to the receiver robot:

call prox.comm.enable(1)
onevent prox.comm
	led.green[0] = 0
	led.green[1] = 0
	led.green[2] = 0
	led.green[3] = 0
	led.green[4] = 0
	led.green[5] = 0
	led.green[6] = 0
	led.green[7] = 0
	led.green[prox.comm.rx.id] = 1
	if (prox.comm.rx == 1) then
		led.rgb[0] = 255
		led.rgb[1] = 0
		led.rgb[2] = 0
	elseif (prox.comm.rx == 2) then
		led.rgb[0] = 0
		led.rgb[1] = 255
		led.rgb[2] = 0
	elseif (prox.comm.rx == 3) then
		led.rgb[0] = 0
		led.rgb[1] = 0
		led.rgb[2] = 255
	end

Load the following line code to the transmitter robot:

call prox.comm.enable(1)

Now you can change the prox.comm.tx values (from 1 to 3) on the transmitter tab and see the effect on the receiver robot; also prox.comm.rx and prox.comm.rx.id on the receiver tab will change accordingly. You can easily transform the id to an angle by knowing that each sensor is placed at 45 degrees from each other. Remember to place the robots near each other (< 5 cm).

2.1.6 Square path

In this example we exploit the onboard odometry to let the robot move in a square path. You have two possibilities: either running on a vertical wall or running on an horizontal plane, both cases are handled automatically. When the Elisa-3 is turned on, it calibrates the sensors (when is placed vertically it rotates around itself for a while with the green led turned on); when the calibration process is finished you can start the square by "touching" the back side proximity. Pay attention that the robot must be placed with the front pointing right when placed vertically.

var DISTANCE = 100	# given in mm
var start = 0
var state = 0
var isVertical
sub updateState
	if start == 1 then
		if (state == 0) then
			mot.left.target = 20
			mot.right.target = 20
			led.rgb[0] = 255
			led.rgb[1] = 0
			led.rgb[2] = 0
			if (odom.x >= DISTANCE) then
				state = 1
			end
		elseif (state == 1) then
			mot.left.target = 0
			mot.right.target = 15
			led.rgb[0] = 0
			led.rgb[1] = 255
			led.rgb[2] = 0
			if (odom.theta >= 90) then
				state = 2
			end
		elseif (state == 2) then
			mot.left.target = 20
			mot.right.target = 20
			led.rgb[0] = 0
			led.rgb[1] = 0
			led.rgb[2] = 255
			if (odom.y >= DISTANCE) then
				state = 3
			end
		elseif (state == 3) then
			mot.left.target = 0
			mot.right.target = 20
			led.rgb[0] = 255
			led.rgb[1] = 255
			led.rgb[2] = 0
			call robot.isVertical(isVertical)
			if (isVertical == 1) then
				if (odom.theta < 0) then
					state = 4
				end
			else
				if (odom.theta >= 180) then
					state = 4
				end
			end
		elseif (state == 4) then
			mot.left.target = 20
			mot.right.target = 20
			led.rgb[0] = 255
			led.rgb[1] = 0
			led.rgb[2] = 255
			if (odom.x <= 0) then
				state = 5
			end
		elseif (state == 5) then
			mot.left.target = 0
			mot.right.target = 20
			led.rgb[0] = 0
			led.rgb[1] = 255
			led.rgb[2] = 255
			call robot.isVertical(isVertical)
			if (isVertical == 1) then
				if ((odom.theta >= -90) and (odom.theta < 0) ) then
					state = 6
				end
			else
				if (odom.theta >= 270) then
					state = 6
				end
			end
		elseif (state == 6) then
			mot.left.target = 20
			mot.right.target = 20
			led.rgb[0] = 0
			led.rgb[1] = 0
			led.rgb[2] = 0
			if (odom.y <= 0) then
				state = 7
			end
		elseif (state == 7) then
			mot.left.target = 0
			mot.right.target = 20
			led.rgb[0] = 0
			led.rgb[1] = 0
			led.rgb[2] = 0
			call robot.isVertical(isVertical)
			if (isVertical == 1) then
				if (odom.theta >= 0) then
					state = 8
				end
			else
				if (odom.theta >= 360) then
					state = 8
				end
			end
		elseif (state == 8) then
			mot.left.target = 0
			mot.right.target = 0
			start = 0
		end
	end

onevent ir.sensors
	if (start == 0) then
		if (prox[4] > 200) then
			call reset.odometry()
			state = 0
			start = 1
		end
	end
	callsub updateState

2.2 Contribute to the Elisa-3 Aseba target

You can get the source code of the Elisa-3 Aseba target from github.
The repo contains all Arduino targets, the Elisa-3 target is placed in the directory elisa3. To build the project follow these steps:

  1. clone the repo by issueing the command: git clone --recursive https://github.com/gctronic/aseba-targets-arduino.git
  2. download Atmel Studio 7 since this IDE was used to create the project; the installation of Atmel Studio includes also the toolchain so you should be able to build the project without any modification
  3. to open the project double click elisa3-aseba.atsln

2.2.1 Dependencies

The project depends on some files of Aseba that is included as submodule in the aseba-targets-arduino repo to simplify the building. The files referenced from the project are:

  • aseba\trunk\vm\natives.c
  • aseba\trunk\vm\natives.h
  • aseba\trunk\vm\vm.c
  • aseba\trunk\vm\vm.h
  • aseba\trunk\transport\buffer\vm-buffer.c
  • aseba\trunk\transport\buffer\vm-buffer.h

The project depends also on the Elisa-3 library contained in the Elisa-3 advanced firmware revision 221.

3 Programming interface

This page describes the programming capabilities of Elisa-3. It lists the different variables, events and functions and indicates to which elements of the robot they refer (see section Hardware to know where is the actual position on the robot of the sensors and actuators). Each variable is marked with either [R] or [W] to indicate whether the variable is used to read a value from the robot or write a value to the robot respectively. This page refers to firmware revision 0 and later.
You can find a document that summarizes the programming interface in the following link elisa3-aseba-cheatsheet.png.

3.1 Standard library

The Elisa-3 comes with the Aseba standard library of native functions, documented on its own page.

3.2 Motors

You can change the wheel speeds by writing in these variables:

  • motor.left.target [W]: requested speed for left wheel
  • motor.right.target [W]: requested speed for right wheel

You can read the real wheel speeds from these variables:

  • motor.left.speed [R]: real speed of left wheel
  • motor.right.speed [R]: real speed of right wheel

The values range from -127 to 127, one unit = 5 mm/s. A value of 127 approximately corresponds to a linear speed of 60 cm/s.

3.3 Green LEDs

8 green LEDs make up a circle on the bottom of the robot.
led.green[0..7] [W]: index 0 sets the intensity of the LED at the front of the robot, the others are numbered clockwise.

3.4 RGB LED

There is one RGB LED in the center of the robot, its light is smoothly spread out through the top diffuser.
led.rgb[0..2] [W]: the indexes 0, 1 and 2 set respectively the intensity of the red, green and blue.
The values range from 0 (off) to 255 (max intensity).

3.5 IR transmitters

There are 3 IR transmitters pointing upwards, two placed in the front side of the robot and one placed in the back side. You can control their state by writing these variables:

  • ir.tx.front [W]: 0 means that both front IRs are turned off, 1 means that both front IRs are turned on
  • ir.tx.back [W]: 0 means that the back IR is turned off, 1 means that the back IR is turned off

3.6 Button

There is a small button in the back side of the Elisa-3. The variable button [R] holds the state of this button (1 = released, 0 = pressed).
Elisa-3 generates the button event when it is pressed or released.

3.7 Proximity sensors

Elisa-3 has 8 proximity sensors around its periphery (placed at 45 degrees from each other). Two arrays of 8 variables hold the values of these sensors, the first is prox [R] and represents the proximity to an object, the second is prox.ambient [R] and represents the ambient light intensity:

  • prox[0], prox.ambient[0] : front
  • prox[1], prox.ambient[1] : front right
  • prox[2], prox.ambient[2] : right
  • prox[3], prox.ambient[3] : back right
  • prox[4], prox.ambient[4] : back
  • prox[5], prox.ambient[5] : back left
  • prox[6], prox.ambient[6] : left
  • prox[7], prox.ambient[7] : front left

The values in the prox array vary from 0 (the robot does not see anything) to 255 (the robot is very close to an obstacle); the values of the prox.ambient array start from 1023 when completely dark and decrease with light increase. Elisa-3 updates these arrays at a frequency of about 80 Hz (when local communication is disabled), and generates the ir.sensors event after every update.

3.8 Ground sensors

Elisa-3 holds 4 ground proximity sensors. These sensors are located at the front of the robot. As black grounds appear like no ground at all (black absorbs the infrared light), these sensors can be used to follow a line on the ground and also to avoid falling from the table. Two arrays of 4 variables hold the values of these sensors, the first is ground [R] and represents the proximity to the ground or the presence of a black line, the second is ground.ambient [R] and represents the ambient light intensity at the ground:

  • ground[0], ground.ambient[0] : left
  • ground[1], ground.ambient[1] : front left
  • ground[2], ground.ambient[2] : front right
  • ground[3], ground.ambient[3] : right

The values in the ground array normally vary from about 600 (white surface) to about 300 (black surface or no ground); the values of the prox.ambient array start from 1023 when completely dark and decrease with light increase. Elisa-3 updates these arrays at a frequency of about 80 Hz (when local communication is disabled), and generates the same ir.sensors event after every update.

3.9 Accelerometer

Elisa-3 contains a 3-axes accelerometer. An array of 3 variables, acc [R], holds the values of the acceleration along these 3 axes:

  • acc[0] : x-axis (from back to front, positive forward)
  • acc[1] : y-axis (from left to right, positive towards right)
  • acc[2] : z-axis (from bottom to top, positive upward)

The values in this array vary from -128 to 128, with 1 g (the acceleration of the earth's gravity) corresponding to the value 64. Elisa-3 generates the acc event after every update.
The z-axis is used also to know the current orientation of the robot, that is if it is moving vertically or horizontally; the current orientation can be accessed using the function robot.isVertical(dest), where dest will be 1 if it is vertical or 0 if it is horizontal.

3.10 Selector

The variable selector [R] shows the current position of the selector (from 0 to 15). Elisa-3 generates the sel event everytime its position is changed.

3.11 Remote control

Elisa-3 contains a receiver for infrared remote controls compatible with the RC5 protocol. When Elisa-3 receives an RC5 code, it generates the rc5 event. In this case, the variables rc5 [R] is updated.

3.12 Battery

The variable bat.percent [R] give you an estimate of the current battery charge given in percentage (100% means you have still a lot of playful time, 0% means you need to wait a little and put the robot in charge). The sampled value can be accessed with the variable _bat.adc [R] (this is an hidden variable); the values range from 0 to 1023.

3.13 Local communication

Elisa-3 can use its infrared proximity sensors to communicate with other robots within a range of about 5 cm. For more detailed information refer to section Local communication.
To use the communication, call the prox.comm.enable(state) function, with 1 in state to enable communication or 0 to turn it off. If the communication is enabled, the value in the prox.comm.tx [W] variable is transmitted to others robots from all the sensors. When Elisa-3 receives a value, the event prox.comm is fired and the value is in the prox.comm.rx [R] variable; moreover the prox.comm.rx.id [R] variable contains the id of the sensors (from 0 to 7, where 0 is the front sensor, sensors id increases clockwise) that received the data.

3.14 Odometry

Elisa-3 is capable of estimating how much distance has traveled each wheel resulting in a robot position given in cartesian coordinates (x, y); when moving horizontally the orientation is estimated through the distance traveled by each wheel, instead when moving vertically (what?? vertically?? yes Elisa-3 can move vertically thanks to its magnetic wheels) the orientation is given directly by the accelerometer and it's very precise.
The variable odom.theta [R] contains the current orientation of the robot given in degrees: when moving horizontally the orientation continuously decreases when moving clockwise and continuously increases when moving counter-clockwise; when moving vertically the orientation is from -180 to 180 degrees. The variables odom.x [R] and odom.y [R] contain the current position of the robot given in millimeters.
By calling the function reset.odometry all the data are reset to zero.

3.15 Timer

Elisa-3 provides a user-defined timer. The variable timer.period [W] allows to specify the period of the timer in milliseconds. The timer starts the countdown when it is initialized (value > 0). When the period expires, the timer generates a timer event. This events is managed in the same way as all the others and cannot interrupt an already executing event handler. The maximum value is 32767 ms (about 32 seconds).

3.16 Onboard behaviors

Elisa-3 include two onboard behaviors that can be activated or deactivated at will that are obstacle avoidance and cliff detection. To use obstacle avoidance, call the behavior.oa.enable(state) function, with 1 in state to enable obstacle avoidance or 0 to disable it; when activated the motors speed will be adapted in order to avoid obstacles. To use cliff detection, call the behavior.cliff.enable(state) function, with 1 in state to enable cliff detection or 0 to disable it; when activated the Elisa-3 will stop as soon as it detect a cliff (pay attention that the robot can detect the void only when going forward).
